Faisceau de câblage pour LED et Ventilateur

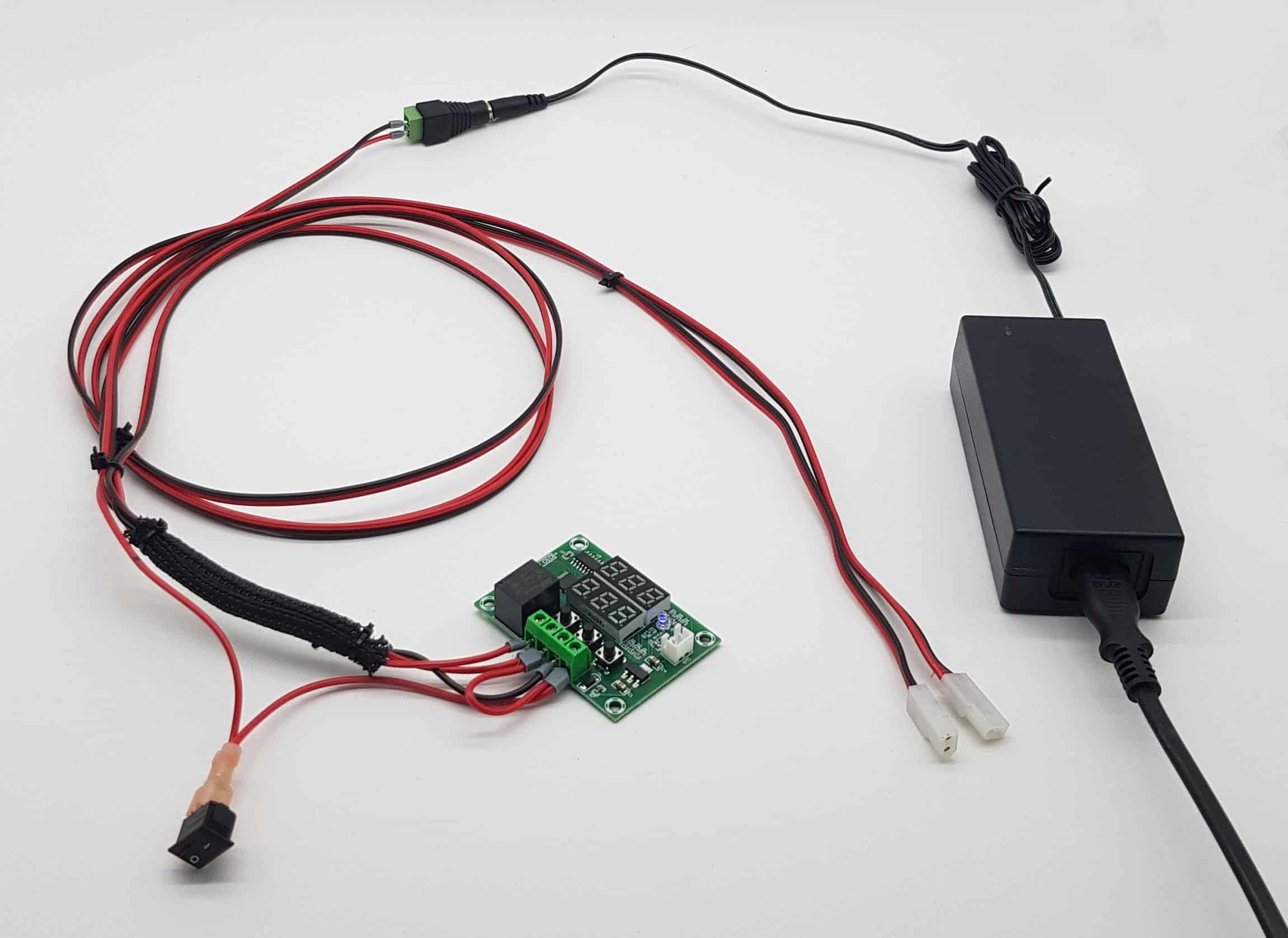

Wiring harness is made of high quality components and high quality silicone 18AWG wire.

LED:

Light can be control with a ON/OFF switch in the front of the enclosure. LED can be easily connected to the cable with a dedicated plug.
LED strip is not included and is available as a separated product here. Please select LED with connector to get the connector crimped on the LED cable.

Temperature control:

Temperature inside the enclosure is controlled by the W1219 circuit using fan filter. Fan can be easily connected to the cable with a dedicated plug.
For efficient temperature control please select the fan on our shop or another fan with high static pressure).
Fan is not included and is available as a separated product here. Please select fan with connector to get the connector crimped on the LED cable.

Power adaptator:

Power adaptator input: AC 100-240V 1.2A
Power adaptator output: DC12V 3A or 5A depending on the option chosen
This power adaptator is dedicated for LED + FAN.
/! If you want to add a Raspberry you need a 12V 5A power adaptator, and a 12V to 5V power converter.

Installation:

This kit is designed for:

• Prusabox with Black or silver printer PSU.
• Prusabox with classic control panel
• Prusabox with Modular control panel
• Prusabox with temperature control panel on the right side.

Cable extensions necessary with:

• Modular box size L, with the Modular control panel: the temperature control panel will go on the right side of your box, and you need to extend connections for LED and fan of 20 cm each.
• Modular box XL: because this version is bigger, you need to extend connections for LED and fan of 20 cm each.
• Modular box XL and the Modular control panel: As the two previous lines explain, you need to extend of 40 cm each

This product is not compatible with cooling system, which is a simplified way to decrease enclosure's inside temperature.
